MOXA NPort 5600 Series
8/16-Port RS-232 or RS-422/485 Serial Device Servers
- 8 or 16 serial ports supporting RS-232/422/485
- Standard 19-inch rackmount size
- 10/100M auto-sensing Ethernet
- Built-in 15 kV ESD protection for all serial signals
- Easy IP address configuration with LCD panel (excluding wide temperature models)
- Configure via Telnet/Web/Windows utility
- Socket modes: TCP server/TCP client/UDP/Real COM
- SNMP MIB-II for network management
NPort® 5610-Geräteserver können komfortabel und transparent bis zu 16 serielle Geräte mit einem Ethernet verbinden, sodass Sie Ihre seriellen Geräte mit einer einfachen Basiskonfiguration vernetzen können. Die Datenübertragung zwischen den seriellen und Ethernet-Schnittstellen erfolgt bidirektional. Mithilfe von NPort® Geräteservern schützen Sie nicht nur Ihre aktuelle Hardwareinvestition, sondern ermöglichen außerdem die zukünftige Netzwerkerweiterung. Sie können das Management ihrer seriellen Geräte zentralisieren und Managementserver über das Netzwerk verteilen.
With the NPort® 5600 rackmount series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

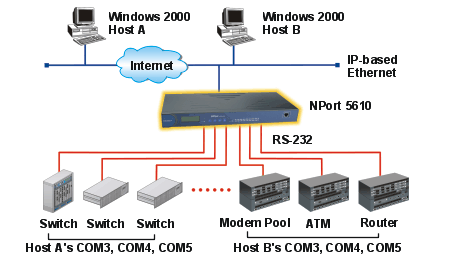

Network Readiness for up to 16 Serial Devices
Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.
19-inch Rackmount Device Server
NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for standard 19-inch rack mounting, allowing you to simplify operational, maintenance, and administrative tasks.
Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.
LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.
Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
Ethernet Interface
Number of Ports
1
Speed
10/100 Mbps, auto MDI/MDIX
Connector
8-pin RJ45
Magnetic Isolation Protection
1.5 kV built-in
Optical Fiber Interface (for -M-SC and -S-SC)
(a) 50/125 μm, 800 MHz*km fiber optic cable
(b) 62.5/125 μm 500 MHz*km fiber optic cable
(c) 9/125 μm dingle-mode fiber optic cable
Serial Interface
Number of Ports
8 or 16
Serial Standards
NPort 5610: RS-232
NPort 5630: RS-422/485

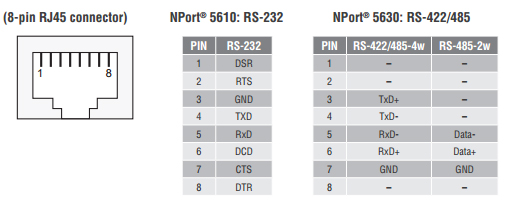

Connector
RJ45 (8 pins)
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kΩ, 150 kΩ (NPort 5650-8/16)
Serial Communication Parameters
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF
Baudrate
50 bps to 921.6 kbps
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Software
Network Protocols
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217
Configuration Options
Web Console, Telnet Console, Windows Utility
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x
Mini Screen with Push Buttons (for standard temp. models)
LCD Panel
Liquid Crystal Display on the case
Push Buttons
Four push buttons for convenient on-site configuration
Physical Characteristics
Housing
Metal
Weight
NPort 5610-8: 3340 g
NPort 5610-8-48V: 3160 g
NPort 5630-8, 5650-8-S-SC, 5650-8-M-SC: 3380 g
NPort 5610-16: 3420 g
NPort 5610-16-48V: 3260 g
NPort 5630-16: 3400 g
Dimensions
Without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
With ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
Environmental Limits
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature
Standard Models: -40 to 75°C (-40 to 167°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Note Please contact us if you require products guaranteed to function properly at higher altitudes.
Power Requirements
Input Voltage
NPort 5610/5630/5650: 100 to 240 VAC, 47 to 63 hz
NPort 5610-48V: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Power Consumption
NPort 5610-8/16: 141 mA @ 100 VAC, 93 mA @ 240 VAC
NPort 5630-8/16: 152 mA @ 100 VAC, 98 mA @ 240 VAC
NPort 5610-8/16-48V: 135 mA @ 48 VDC
Standards and Certifications
EMI
EN55022 Class A, FCC part 15 Subpart B Class A
EMS
EN 61000-4-2 ESD: contact 4 kV; air 8 kV
EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz)
EN 61000-4-4 EFT: Power 4 kV; Signal 2 kV
EN 61000-4-5 Surge: AC 1 kV (AC models); DC 2 kV (DC/HV models); Signal 1 kV
EN 61000-4-6 CS: 3 V
EN 61000-4-8
EN 61000-4-11: A
Safety
UL 60950-1, EN 60950-1
EMC
55022/24
Medical
EN 60601-1-2 Class B, EN 55011
Reliability
Automatic Reboot Trigger
Built-in WDT (watchdog timer)
MTBF (mean time between failures)
NPort 5610-8: 97,294 hrs
NPort 5610-16: 94,928 hrs
NPort 5610-8-48V: 96,758
NPort 5610-16-48V: 94,417 hrs
NPort 5630-8: 118,405 hrs
NPort 5630-16: 91,483 hrs
Network Readiness for up to 16 Serial Devices
Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.
19-inch Rackmount Device Server
NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for standard 19-inch rack mounting, allowing you to simplify operational, maintenance, and administrative tasks.
Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.
LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.
Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
Ethernet Interface
Number of Ports
1
Speed
10/100 Mbps, auto MDI/MDIX
Connector
8-pin RJ45
Magnetic Isolation Protection
1.5 kV built-in
Optical Fiber Interface (for -M-SC and -S-SC)
100BaseFX | ||
Multi-mode | Single-mode | |
Wavelength | 1300 nm | 1310 nm |
Max. TX | -10 dBm | 0 dBm |
Min. TX | -20 sBm | -5 dBm |
RX Sensitivity | -32 dBm | -34 dBm |
Link Budget | 12 dB | 29 dB |
Typical Distance | 5 km (a) 4 km (b) | 40 km (c) |
Saturation | -6 dBm | -3 dBm |
(a) 50/125 μm, 800 MHz*km fiber optic cable
(b) 62.5/125 μm 500 MHz*km fiber optic cable
(c) 9/125 μm dingle-mode fiber optic cable
Serial Interface
Number of Ports
8 or 16
Serial Standards
NPort 5610: RS-232
NPort 5630: RS-422/485
Connector
RJ45 (8 pins)
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kΩ, 150 kΩ (NPort 5650-8/16)
Serial Communication Parameters
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF
Baudrate
50 bps to 921.6 kbps
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Software
Network Protocols
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217
Configuration Options
Web Console, Telnet Console, Windows Utility
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x
Mini Screen with Push Buttons (for standard temp. models)
LCD Panel
Liquid Crystal Display on the case
Push Buttons
Four push buttons for convenient on-site configuration
Physical Characteristics
Housing
Metal
Weight
NPort 5610-8: 3340 g
NPort 5610-8-48V: 3160 g
NPort 5630-8, 5650-8-S-SC, 5650-8-M-SC: 3380 g
NPort 5610-16: 3420 g
NPort 5610-16-48V: 3260 g
NPort 5630-16: 3400 g
Dimensions
Without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
With ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
Environmental Limits
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature
Standard Models: -40 to 75°C (-40 to 167°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Note Please contact us if you require products guaranteed to function properly at higher altitudes.
Power Requirements
Input Voltage
NPort 5610/5630/5650: 100 to 240 VAC, 47 to 63 hz
NPort 5610-48V: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Power Consumption
NPort 5610-8/16: 141 mA @ 100 VAC, 93 mA @ 240 VAC
NPort 5630-8/16: 152 mA @ 100 VAC, 98 mA @ 240 VAC
NPort 5610-8/16-48V: 135 mA @ 48 VDC
Standards and Certifications
EMI
EN55022 Class A, FCC part 15 Subpart B Class A
EMS
EN 61000-4-2 ESD: contact 4 kV; air 8 kV
EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz)
EN 61000-4-4 EFT: Power 4 kV; Signal 2 kV
EN 61000-4-5 Surge: AC 1 kV (AC models); DC 2 kV (DC/HV models); Signal 1 kV
EN 61000-4-6 CS: 3 V
EN 61000-4-8
EN 61000-4-11: A
Safety
UL 60950-1, EN 60950-1
EMC
55022/24
Medical
EN 60601-1-2 Class B, EN 55011
Reliability
Automatic Reboot Trigger
Built-in WDT (watchdog timer)
MTBF (mean time between failures)
NPort 5610-8: 97,294 hrs
NPort 5610-16: 94,928 hrs
NPort 5610-8-48V: 96,758
NPort 5610-16-48V: 94,417 hrs
NPort 5630-8: 118,405 hrs
NPort 5630-16: 91,483 hrs
Ordering Information | |
Available Models | |
NPort 5610-8 | 8-port RS-232 rackmount device server with RJ45 connectors and 100-240 VAC power input |
NPort 5610-8-48V | 8-port RS-232 rackmount device server with RJ45 connectors and 48 VDC power input |
NPort 5630-8 | 8-port RS-422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input |
NPort 5610-16 | 16-port RS-232 rackmount device server with RJ45 connectors and 100-240 VAC power input |
NPort 5610-16-48V | 16-port RS-232 rackmount device server with RJ45 connectors and 48 VDC power input |
NPort 5630-16 | 16-port RS-422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input |
Optional Accessories
| |
CBL-RJ45F25-150 | 8-pin RJ45 to DB25 female cable, 150 cm |
CBL-RJ45M25-150 | 8-pin RJ45 to DB25 male cable, 150 cm |
CBL-RJ45F9-150 | 8-pin RJ45 to DB9 female cable, 150 cm |
CBL-RJ45M9-150 | 8-pin RJ45 to DB9 male cable, 150 cm |
