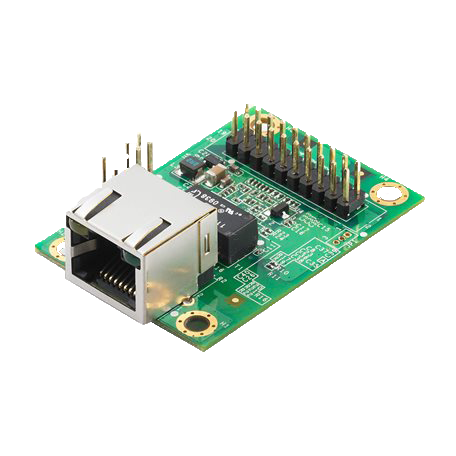

MOXA MiiNePort E3 Series
10/100 Mbps embedded serial device servers with RJ45
- IEEE 802.3af compliant PoE pass-through
- Use Moxa’s high quality and reliable second generation MiiNe SoC
- Versatile choice of operation modes fulfill specific application requirements
- Green design with extremely low power consumption
- MiiNePort NetEZ Technology makes integration incredibly easy
- Highly compact embedded device module
- Support IPv6
Der Embedded-Geräteserver MiiNePort E3 von Moxa wurde für Hersteller konzipiert, die ihre seriellen Geräte bei minimalem Integrationsaufwand mit vielseitigen Vernetzungsmöglichkeiten versehen möchten.
Kernstück des MiiNePort E3 ist MiiNe, das von Moxa entwickelte SoC (System-on-a-Chip) der zweiten Generation. Dieses SoC unterstützt 10/100-Mbps-Ethernet-Verbindungen sowie serielle Baudraten von bis zu 921,6 Kbps, zeichnet sich durch eine große Auswahl an voreingestellten Betriebsarten aus und hat nur eine sehr geringe Leistungsaufnahme. Mit der innovativen NetEZ-Technologie von Moxa macht der MiiNePort E3 im Handumdrehen jedes beliebige Gerät, das über eine serielle Standardschnittstelle verfügt, zu einem Ethernet-fähigen Gerät. Da der MiiNePort E3 zudem ein überaus kompakter Embedded-Geräteserver mit RJ45-Anschluss ist, lässt er sich problemlos in praktisch jedes marktübliche serielle Gerät integrieren.
The MiiNe—Moxa’s 2nd Generation SoC
The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E3, which uses the MiiNe for its SoC, is a compact embedded device server that has the lowest power consumption of similar products. The MiiNe has the following features:
Form Factor
Type
Pin header module
Dimensions
35 x 52.5 x 18 mm (1.38 x 2.07 x 0.71 in)
Weight
12 g
System Information
CPU
32-bit ARM Core
RAM
4 MB built in
Flash
2 MB built in
Ethernet Interface
Number of Ports
1
Speed
10/100 Mbps, auto MDI/MDIX
Magnetic Isolation Protection
1.5 kV built-in
Connector
RJ45 (magnetic)
LEDs
10BASE-T & 100BASE-TX Link Activity
PoE Pass-through
802.3af compliant
Serial Interface
Number of Ports
1
Transmission Format
Standard TTL
Serial Communication Parameters
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS, DTR/DSR, XON/XOFF
Baudrate (non-standard baudrates supported)
MiiNePort E3: 50 bps to 230.4 kbps
MiiNePort E3-H: 50 bps to 921.6 kbps

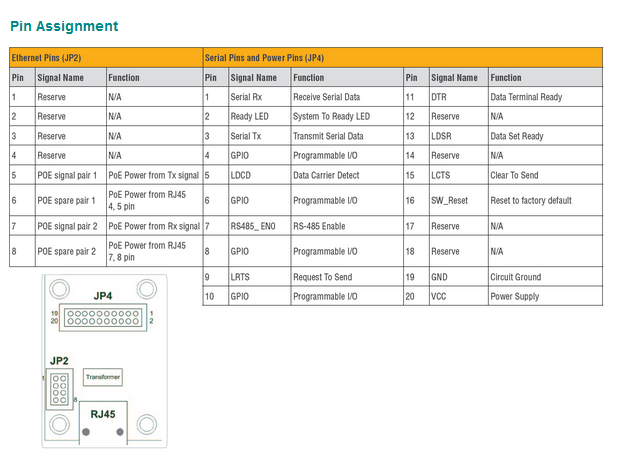

Serial Signals
TTL
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
Digital I/O Pins
GPIO
4 configurable I/O pins
Software
Network Protocols
ICMP, ARP, IPv4/v6, TCP, UDP, DHCP, HTTP, SNMP V1, SMTP, TFTP, Auto IP, Telnet, BOOTP
Configuration Options
Web Console, Serial Console (Serial Command Mode), Telnet Console, Windows Utility
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x
Operation Modes
Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, RFC2217
NetEZ function
EZPower, EZPage, SCM (Serial Command Mode), AutoCFG
Environmental Limits
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models:
-40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
-40 to 60°C (-40 to 140°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Note
Please contact us if you require products guaranteed to function properly at higher altitudes.
Power Requirements
Input Voltage
3.3 to 5 VDC (±5%)
Power Consumption
157 mA @ 3.3 VDC, 119 mA @ 5 VDC input max.
Standards and Certifications
EMI
EN 55022 Class B, EN 61000-3-2, EN 61000-3-3
EMS
EN 55024,
EN 61000-4-2 (ESD),
EN 61000-4-3 (RS),
EN 61000-4-4 (EFT),
EN 61000-4-5 (Surge),
EN 61000-4-6 (CS),
EN 61000-4-8,
EN 61000-4-11
Shock
IEC-68-2-27
Vibration
IEC-68-2-6
Reliability
MTBF (mean time between failures)
3,608,031 hrs
Available Models
MiiNePort E3
MiiNePort E3-H
MiiNePort E3-T
MiiNePort E3-H-T
MiiNePort E3-ST
MiiNePort E3-H-ST
The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E3, which uses the MiiNe for its SoC, is a compact embedded device server that has the lowest power consumption of similar products. The MiiNe has the following features:
- Designed for serial-to-Ethernet applications
- Uses an ARM core
- Uses Moxa’s own advanced UART technology
- 2 MB Flash and 4 MB SDRAM memory built in
Form Factor
Type
Pin header module
Dimensions
35 x 52.5 x 18 mm (1.38 x 2.07 x 0.71 in)
Weight
12 g
System Information
CPU
32-bit ARM Core
RAM
4 MB built in
Flash
2 MB built in
Ethernet Interface
Number of Ports
1
Speed
10/100 Mbps, auto MDI/MDIX
Magnetic Isolation Protection
1.5 kV built-in
Connector
RJ45 (magnetic)
LEDs
10BASE-T & 100BASE-TX Link Activity
PoE Pass-through
802.3af compliant
Serial Interface
Number of Ports
1
Transmission Format
Standard TTL
Serial Communication Parameters
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS, DTR/DSR, XON/XOFF
Baudrate (non-standard baudrates supported)
MiiNePort E3: 50 bps to 230.4 kbps
MiiNePort E3-H: 50 bps to 921.6 kbps
Serial Signals
TTL
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
Digital I/O Pins
GPIO
4 configurable I/O pins
Software
Network Protocols
ICMP, ARP, IPv4/v6, TCP, UDP, DHCP, HTTP, SNMP V1, SMTP, TFTP, Auto IP, Telnet, BOOTP
Configuration Options
Web Console, Serial Console (Serial Command Mode), Telnet Console, Windows Utility
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x
Operation Modes
Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, RFC2217
NetEZ function
EZPower, EZPage, SCM (Serial Command Mode), AutoCFG
Environmental Limits
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models:
-40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
-40 to 60°C (-40 to 140°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Note
Please contact us if you require products guaranteed to function properly at higher altitudes.
Power Requirements
Input Voltage
3.3 to 5 VDC (±5%)
Power Consumption
157 mA @ 3.3 VDC, 119 mA @ 5 VDC input max.
Standards and Certifications
EMI
EN 55022 Class B, EN 61000-3-2, EN 61000-3-3
EMS
EN 55024,
EN 61000-4-2 (ESD),
EN 61000-4-3 (RS),
EN 61000-4-4 (EFT),
EN 61000-4-5 (Surge),
EN 61000-4-6 (CS),
EN 61000-4-8,
EN 61000-4-11
Shock
IEC-68-2-27
Vibration
IEC-68-2-6
Reliability
MTBF (mean time between failures)
3,608,031 hrs
Available Models
MiiNePort E3
- Embedded device server for TTL devices, pin header module, 10/100M with RJ45 connector, 50 bps to 230.4 Kbps baudrate, 0 to 55°C operating temperature
MiiNePort E3-H
- Embedded device server for TTL devices, pin header module, 10/100M with RJ45 connector, 50 bps to 921.6 Kbps baudrate, 0 to 55°C operating temperature
MiiNePort E3-T
- Embedded device server for TTL devices, pin header module, 10/100M with RJ45 connector, 50 bps to 230.4 Kbps baudrate, -40 to 85°C operating temperature
MiiNePort E3-H-T
- Embedded device server for TTL devices, pin header module, 10/100M with RJ45 connector, 50 bps to 921.6 Kbps baudrate, -40 to 85°C operating temperature
MiiNePort E3-ST
- Starter kit for the MiiNePort E3 Series, module included
MiiNePort E3-H-ST
- Starter kit for the MiiNePort E3-H Series, module included
