MOXA CP-114EL / EL-I
4-port RS-232/422/485 PCI Express boards with optional 2 KV isolation
- PCI Express x1 compliant
- 921.6 Kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Low profile form factor fits small-sized PCs
- Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/
- x64),Linux 2.4, Linux 2.6 (x86/x64), QNX 6, Windows XP Embedded,
- SCO OpenServer 5/6, UnixWare 7
- 15 KV ESD protection on the board
Die Modelle CP-114EL und CP-114EL-I sind intelligente PCI Express-Boards mit vier Ports für Point-of-Sale- und Geldautomaten-Anwendungen. Die Boards sind die erste Wahl führender Entwickler aus dem Bereich industrielle Automatisierung und von Systemintegratoren. Sie unterstützen zahlreiche Betriebssysteme, darunter Windows, Linux und sogar Unix. Darüber hinaus unterstützen alle seriellen RS-232/422/485-Ports dem Board die sehr hohe Baudrate von 921,6 Kbps. Die Modelle CP-114EL und CP-114EL-I bieten umfassende Modemsteuerungssignale, um die Kompatibilität mit einer Vielzahl von seriellen Peripheriegeräten sicherzustellen. Die PCI Express „x1“-Klassifizierung ermöglicht die Installation in allen PCI Express-Steckplätzen.
Kleinerer Formfaktor
Die Modelle CP-114EL und CP-114EL-I sind flache Boards, die mit allen PCI Express-Steckplätzen kompatibel sind. Die Boards benötigen nur eine 3,3-VDC-Stromversorgung, sodass sie in jeden Host-Computer integriert werden können – von Minisystemen bis hin zu einem Standard-PC.
Treiber für Windows und Linux
Moxa unterstützt eine breite Palette von Betriebssystemen. Die CP-114EL/EL-I-Boards machen hierbei keine Ausnahme. Zuverlässige Windows COM- und Linux/ TTY-Treiber werden für alle Moxa Boards zur Verfügung gestellt. Außerdem werden weitere Betriebssysteme (z. B. WEPOS) für die umfassende Integration angeboten
Kleinerer Formfaktor
Die Modelle CP-114EL und CP-114EL-I sind flache Boards, die mit allen PCI Express-Steckplätzen kompatibel sind. Die Boards benötigen nur eine 3,3-VDC-Stromversorgung, sodass sie in jeden Host-Computer integriert werden können – von Minisystemen bis hin zu einem Standard-PC.
Treiber für Windows und Linux
Moxa unterstützt eine breite Palette von Betriebssystemen. Die CP-114EL/EL-I-Boards machen hierbei keine Ausnahme. Zuverlässige Windows COM- und Linux/ TTY-Treiber werden für alle Moxa Boards zur Verfügung gestellt. Außerdem werden weitere Betriebssysteme (z. B. WEPOS) für die umfassende Integration angeboten
Hardware
Comm. Controller
16C550C compatible
Bus
PCI Express x1
Connector
DB44 female
Serial Interface
Number of Ports
4
Serial Standards
RS-232/422/485
Max. No. of Boards per PC
4
Serial Line Protection
ESD Protection
15 kV on the board
Electrical Isolation
2 kV (CP-114EL-I only)
Performance
Baudrate
50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS, XON/XOFF
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w
Data+(B), Data-(A), GND
Operating Systems
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS
Fixed TTY Drivers
QNX 6, SCO OpenServer, UnixWare 7, Solaris 10
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x
Physical Characteristics

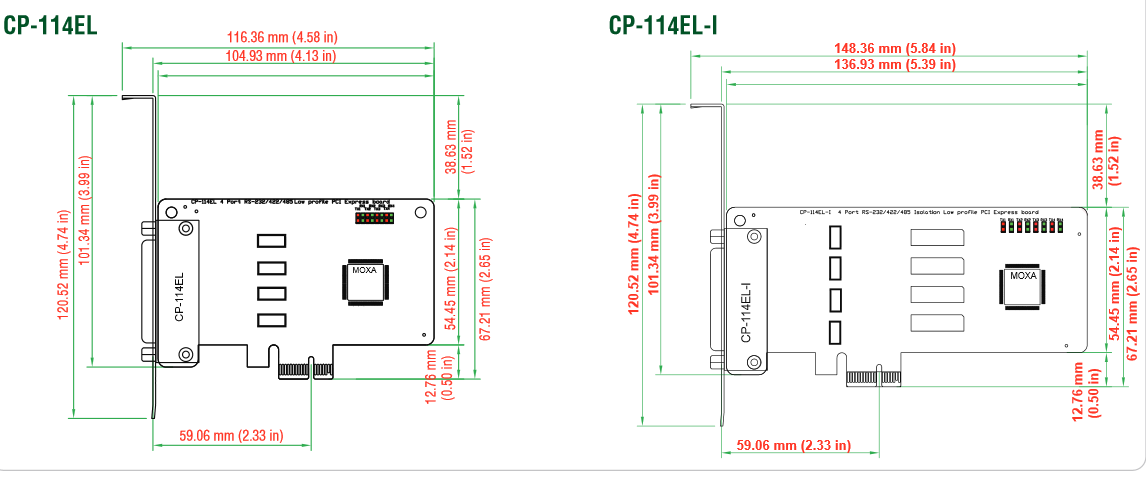

Dimensions
CP-114EL: 67.21 x 103 mm (2.69 x 4.06 in)
CP-114EL-I: 67.21 x 135 mm (2.69 x 5.31 in)
Environmental Limits
Operating Temperature
0 to 55°C (32 to 131°F)
Storage Temperature
-20 to 85°C (-4 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Note Please contact us if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
EMC
CE, FCC
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
EMS
EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)
Green Product
RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time
684,289 hrs
Database
Telcordia (Bellcore), GB
Power Requirements
Power Consumption
CP-114EL: 835 mA @ 3.3 V
CP-114EL-I: 1170 mA @ 3.3 V
Comm. Controller
16C550C compatible
Bus
PCI Express x1
Connector
DB44 female
Serial Interface
Number of Ports
4
Serial Standards
RS-232/422/485
Max. No. of Boards per PC
4
Serial Line Protection
ESD Protection
15 kV on the board
Electrical Isolation
2 kV (CP-114EL-I only)
Performance
Baudrate
50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS, XON/XOFF
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w
Data+(B), Data-(A), GND
Operating Systems
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS
Fixed TTY Drivers
QNX 6, SCO OpenServer, UnixWare 7, Solaris 10
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x
Physical Characteristics
Dimensions
CP-114EL: 67.21 x 103 mm (2.69 x 4.06 in)
CP-114EL-I: 67.21 x 135 mm (2.69 x 5.31 in)
Environmental Limits
Operating Temperature
0 to 55°C (32 to 131°F)
Storage Temperature
-20 to 85°C (-4 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Note Please contact us if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
EMC
CE, FCC
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
EMS
EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)
Green Product
RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time
684,289 hrs
Database
Telcordia (Bellcore), GB
Power Requirements
Power Consumption
CP-114EL: 835 mA @ 3.3 V
CP-114EL-I: 1170 mA @ 3.3 V
Available Modules | CP-114EL: | 4-port RS-232/422/485 low profile PCI Express x1 serial board |
CP-114EL-I: | 4-port RS-232/422/485 low profile PCI Express x1 serial board with optical isolation |
CP-114EL-DB9M: | 4-port RS-232/422/485 low profile PCI Express x1 serial board (includes DB9 male cable) | CP-114EL-DB25M: | 4-port RS-232/422/485 low profile PCI Express x1 serial board (includes DB25 male cable) | CP-114EL-I-DB9M: | 4-port RS-232/422/485 low profile PCI Express x1 serial board with optical isolation (includes DB9 male cable) | CP-114EL-I-DB25M: | 4-port RS-232/422/485 low profile PCI Express x1 serial board with optical isolation (includes DB25 male cable) |
