MOXA NPort 5430 Series

Make up to 4 RS-422/485 serial devices Internet-ready

MOXA NPort 5430 Series
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • Easy-to-use LCM (Liquid Crystal Module) interface for IP address configuration
  • Auto-detecting 10/100 Mbps Ethernet
  • 4 RS-422/485 ports
  • Surge protection for all serial signals (15 KV ESD)
  • Supports TCP Server, TCP Client, UDP, and Real COM Modes
  • Supports web and Telnet consoles
  • Supports SNMP MIB-II for network management
  • NPort 5430I come with 2 KV of isolation protection
Netzwerkbereitschaft für bis zu vier serielle Geräte

NPort® 5430-Geräteserver können komfortabel und transparent bis zu vier serielle Geräte mit einem Ethernet verbinden, sodass Sie Ihre seriellen Geräte mit einer einfachen Basiskonfiguration vernetzen können. Die Datenübertragung zwischen den seriellen und Ethernet-Schnittstellen erfolgt bidirektional. Mithilfe von NPort® Geräteservern schützen Sie nicht nur Ihre aktuelle Hardwareinvestition, sondern ermöglichen außerdem die zukünftige Netzwerkerweiterung. Sie können das Management ihrer seriellen Geräte zentralisieren und Managementserver über das Netzwerk verteilen.

Unabhängige Betriebsmodi für jeden seriellen Port

NPort 5430-Geräteserver können zur Verbindung verschiedener Geräte für Remote-Datenabruf, Ereignisverarbeitung oder Daten-Multicasting über ein TCP/IP-Netzwerk verwendet werden. Jeder serielle Port des NPort® 5430 funktioniert unabhängig, um maximale Vielseitigkeit zu bieten. Port 1 kann z. B. im Treibermodus betrieben werden, Port 2 im TCP-Server-Modus und die Ports 3 und 4 im TCP-Client-Modus.
ProdGrafik

Easy-to-use Serial Device Server

The built-in LCM human-machine interface displays all configuration parameters,and includes 4 buttons for inputting data, or for selecting the operation mode, making it easy to set up server parameters, including IP address, netmask, and gateway address. Furthermore, you can also monitor server status and data transmission, eliminating the need to prepare additional PCs during installation.

Real COM/TTY Port

NPort 5430 works like an add-on multiport serial board to the Windows host, but with one major advantage—the TCP/IP network. With NPort’s Real COM/TTY drivers, the serial ports on NPort 5430 are recognized as Real COM ports by the Windows operating system, or Real TTY ports by Linux environments. The usual transmit/receive data signals are provided for RS-422, and 2-wire and 4-wire RS-485.




Ethernet Interface

Number of Ports
1

Speed
10/100 Mbps, auto MDI/MDIX

Connector
8-pin RJ45

Magnetic Isolation Protection
1.5 kV built-in


Serial Interface

Number of Ports
4

Serial Standards
NPort 5410: RS-232
NPort 5430/5430I: RS-422/485 (software selectable)
NPort 5450/5450I/5450-T/5450I-T: RS-232/422/485 (software selectable)

Connector
NPort 5410/5450/5450I/5450-T/5450I-T: DB9 male
NPort 5430/5430I: Terminal block

Serial Line Protection
15 kV ESD protection for all signals
2 kV isolation protection (NPort 5430I/5450I/5450I-T)

RS-485 Data Direction Control
ADDC® (automatic data direction control)

Pull High/Low Resistor for RS-485
1 kΩ, 150 kΩ

Terminator for RS-485
120 Ω


Serial Communication Parameters


Data Bits
5, 6, 7, 8

Stop Bits
1, 1.5, 2

Parity
None, Even, Odd, Space, Mark

Flow Control
RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF

Baudrate
50 bps to 921.6 kbps


Serial Signals

RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

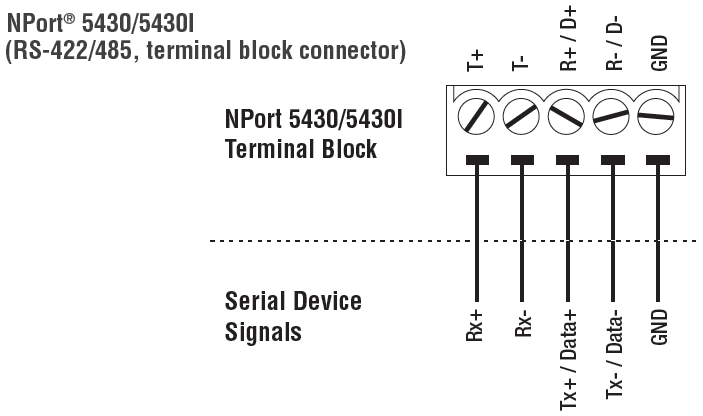

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND


Software

Network Protocols
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP

Configuration Options
Web Console, Telnet Console, Windows Utility

Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Fixed TTY Drivers
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x


Mini Screen with Push Buttons (for standard temp. models)

LCD Panel
Liquid Crystal Display on the case

Push Buttons
Four push buttons for convenient on-site configuration


Physical Characteristics

Housing
Metal

Weight
740 g

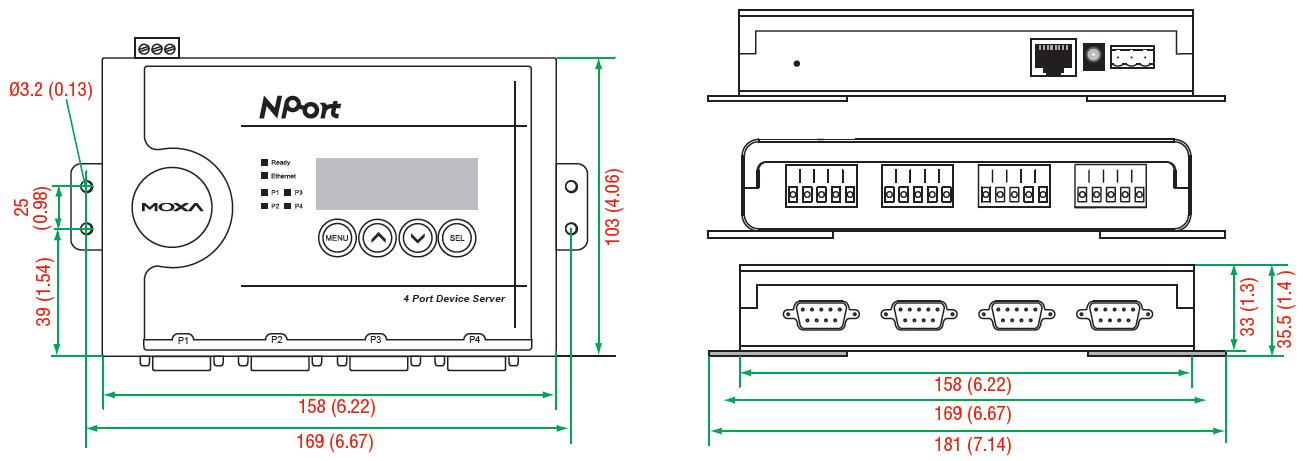

Dimensions
Without mounting kit: 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)
With mounting kit: 181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in)


Environmental Limits

Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature
-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Altitude
Up to 2000 m

Note Please contact us if you require products guaranteed to function properly at higher altitudes.


Power Requirements

Input Voltage
12 to 48 VDC

Power Consumption
NPort 5410: 350 mA @ 12 V, 190 mA @ 24 V
NPort 5430: 320 mA @ 12 V, 175 mA @ 24 V
NPort 5430I: 530 mA @ 12 V, 280 mA @ 24 V
NPort 5450/5450-T: 350 mA @ 12 V, 190 mA @ 24 V
NPort 5450I/5450I-T: 554 mA @ 12 V, 294 mA @ 24 V


Standards and Certifications

Safety
UL 60950-1, EN 60950-1

EMC
CE, FCC

EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS
EN 55024

Marine
DNV (standard temp. models only)

Medical
EN 60601-1-2 Class B, EN 55011 (NPort 5410/5450/5450I only)


Reliability

Alert Tools
Built-in buzzer and RTC (real-time clock)

Automatic Reboot Trigger
Built-in WDT (watchdog timer)

MTBF (mean time between failures)
NPort 5410: 205,153 hrs
NPort 5430: 201,699 hrs
NPort 5430I: 114,540 hrs
NPort 5450/5450I: 206,903 hrs
NPort 5450-T/5450I-T: 206,903 hrs



Ordering Information
NPort 5430 4-Port RS-422/485 Serial Device Server
NPort 5430I NPort 5430, w/ 2 KV isolation
Above item includes:
  • 4-port Serial Device Server
  • Quick Installation Guide
  • NPort Document and Software CD-ROM
  • Power Cord
Accessories
DK-35A DIN-Rail Mounting Kit (35 mm)
P/N: 111170000252 Power Adaptor
DR-X-24 DIN-Rail Power Supply (X for different power rates)
