MOXA NPort P5150A
1-port PoE RS-232/422/485 serial device servers
- IEEE 802.3af-compliant PoE PD equipment
- Speedy 3-step web-based configuration
- Surge protection for serial, Ethernet, and power lines
- COM port grouping and UDP multicast applications
- Screw connectors for secure installation
- Real COM/TTY drivers for Windows and Linux
- Standard TCP/IP interface and versatile TCP and UDP operation modes
Die NPort®-Geräteserver P5150A sind so konzipiert, dass serielle Geräte im Nu netzwerkfähig sind.
Sie sind zu IEEE 802.3af konforme PD-Komponenten, die von einem PoE-PSE-Gerät mit Strom versorgt werden können und keine zusätzliche Stromversorgung benötigen. Mit den NPort®-Geräteservern P5150A erhält Ihre PC-Software von jedem Punkt im Netzwerk aus direkten Zugriff auf serielle Geräte. Die Geräteserver NPort® P5150A sind kompakt und halten auch höheren mechanischen Belastungen stand. Durch ihre Benutzerfreundlichkeit ermöglichen sie ein müheloses Implementieren von ebenso einfachen wie zuverlässigen Seriell-zu-Ethernet-Lösungen.
Surge-protected Serial, Ethernet, and Power Lines
Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® P5150A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.
3-step Web-based Configuration
The NPort® P5150A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® P5150A’s web console guides users through 3 simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.
Easy to Troubleshoot
NPort® P5150A device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an e-mail alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.
Ethernet Interface
Number of Ports
1 Speed
10/100 Mbps, auto MDI/MDIX
Connector
8-pin RJ45
Magnetic Isolation Protection
1.5 kV built-in
Serial Interface
Number of Ports
1
Serial Standards
RS-232/422/485
Connector
DB9 male
Serial Line Protection
15 kV ESD protection for all signals, Level 2 Surge, EN61000-4-5
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kΩ, 150 kΩ
Serial Communication Parameters
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate
50 bps to 921.6 kbps

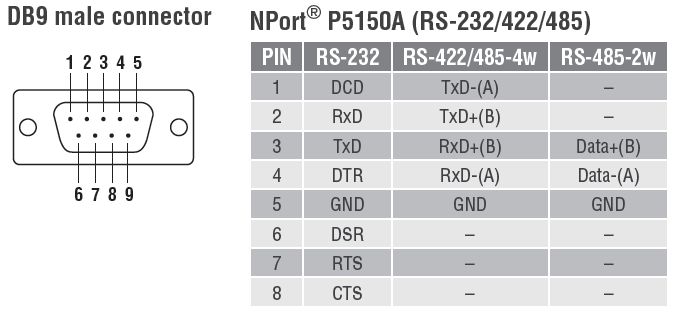

Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Software
Network Protocols
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Configuration Options
Web Console (with new Quick Setup), Serial Console, Telnet Console, Windows Utility
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x
Physical Characteristics
Housing
Metal
Weight
300 g

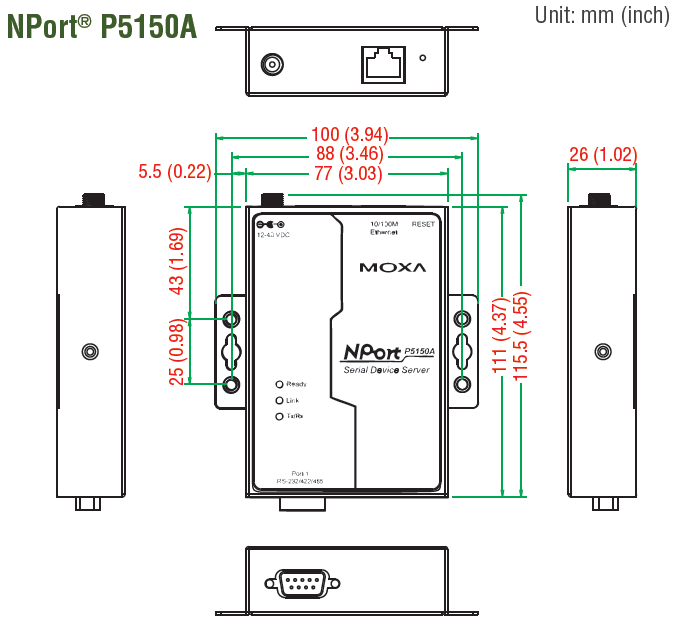

Dimensions
Without ears: 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
With ears: 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
Environmental Limits
Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Note Please contact us if you require products guaranteed to function properly at higher altitudes.
Power Requirements
Input Voltage
12 to 48 VDC (supplied by power adapter) or 48 VDC (supplied by PoE)
Power Consumption
125 mA @ 12 V, 40 mA @ 48 VDC (supplied by power adapter)
180 mA @ 48 V (supplied by PoE)
Standards and Certifications
Safety
UL 60950-1, EN 60950-1
EMC
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024
Power Line Protection
EN 61000-4-4(EFT) Level 2,
EN 61000-4-5(Surge) Level 3
Reliability
Automatic Reboot Trigger
Built-in WDT (watchdog timer)
MTBF (mean time between failures)
2,231,530 hrs
Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® P5150A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.
3-step Web-based Configuration
The NPort® P5150A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® P5150A’s web console guides users through 3 simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.
Easy to Troubleshoot
NPort® P5150A device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an e-mail alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.
Ethernet Interface
Number of Ports
1 Speed
10/100 Mbps, auto MDI/MDIX
Connector
8-pin RJ45
Magnetic Isolation Protection
1.5 kV built-in
Serial Interface
Number of Ports
1
Serial Standards
RS-232/422/485
Connector
DB9 male
Serial Line Protection
15 kV ESD protection for all signals, Level 2 Surge, EN61000-4-5
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kΩ, 150 kΩ
Serial Communication Parameters
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate
50 bps to 921.6 kbps
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Software
Network Protocols
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Configuration Options
Web Console (with new Quick Setup), Serial Console, Telnet Console, Windows Utility
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x, 3.x
Physical Characteristics
Housing
Metal
Weight
300 g
Dimensions
Without ears: 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
With ears: 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
Environmental Limits
Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Note Please contact us if you require products guaranteed to function properly at higher altitudes.
Power Requirements
Input Voltage
12 to 48 VDC (supplied by power adapter) or 48 VDC (supplied by PoE)
Power Consumption
125 mA @ 12 V, 40 mA @ 48 VDC (supplied by power adapter)
180 mA @ 48 V (supplied by PoE)
Standards and Certifications
Safety
UL 60950-1, EN 60950-1
EMC
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024
Power Line Protection
EN 61000-4-4(EFT) Level 2,
EN 61000-4-5(Surge) Level 3
Reliability
Automatic Reboot Trigger
Built-in WDT (watchdog timer)
MTBF (mean time between failures)
2,231,530 hrs
