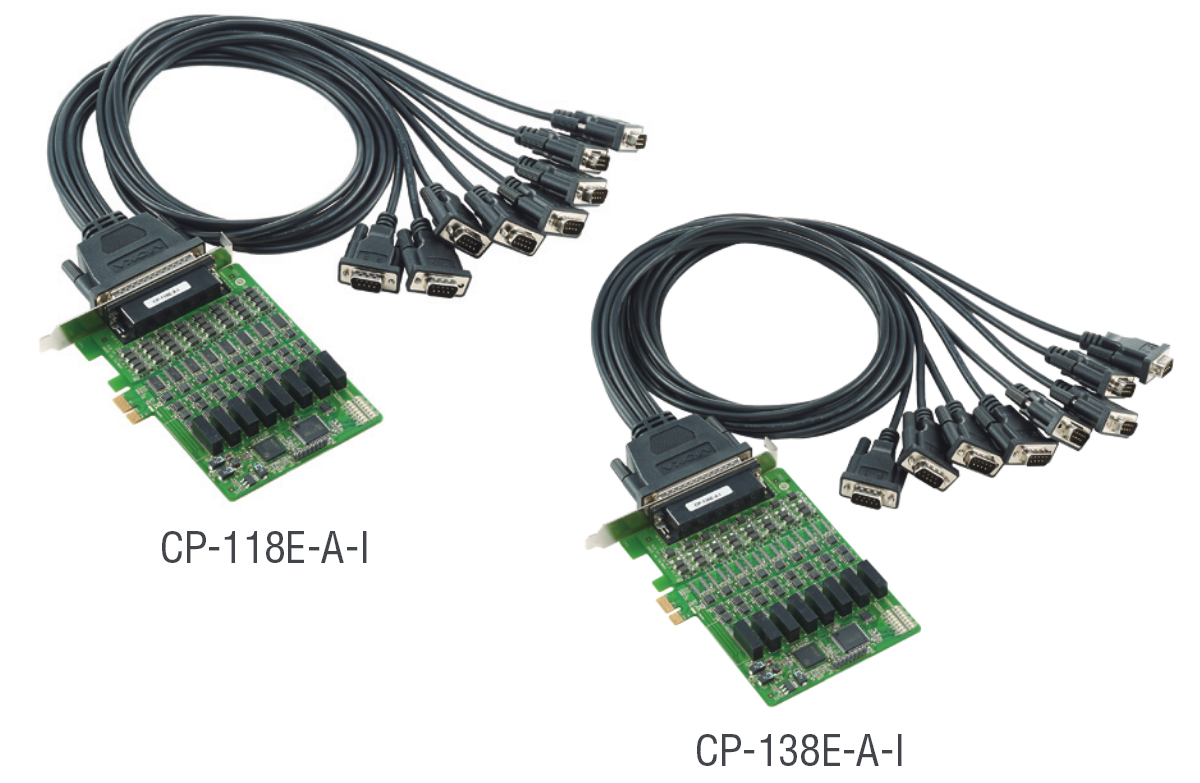

MOXA CP-118E-A-I / CP-138E-A-I

8-port 3-in-1, RS-422/485 PCI Express board with 4 kV surge protection and 2 kV electrical isolation

MOXA CP-118E-A-I / CP-138E-A-I
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • PCI Express x1 compliant
  • Serial communication speed up to 921.6 Kbps
  • 128-byte FIFO and on-chip S/W flow control
  • Variety of connection cables and boxes available for RS-232/422/485
  • Drivers provided for the latest versions of Windows, Linux, and Unix
  • Easy maintenance with on-board LED display and management software
  • 15 kV ESD, 4 kV surge, and 2 kV electrical isolation onboard
Die Modelle CP-118E-A-I und CP-138E-A-I sind intelligente serielle PCI Express-Multiport-Boards für POS- und ATM-Anwendungen sowie für Anwendungen von Industrieautomationssystem-Herstellern und Systemintegratoren. Die Modelle CP-118E-A-I und CP-138E-A-I sind mit allen gängigen Betriebssystemen kompatibel.

Jeder ihrer 8 seriellen Ports unterstützt Datenraten von bis zu 921,6 kbps und liefert zudem alle Modem-Steuersignale, so dass die Kompatibilität mit einer Vielzahl von seriellen Peripheriegeräten gewährleistet ist. Darüber hinaus arbeiten die Modelle CP-118E-A-I und CP-138E-A-I nach dem Standard PCI Express x1 und können somit in jedem beliebigen PCI Express-Steckplatz installiert werden.

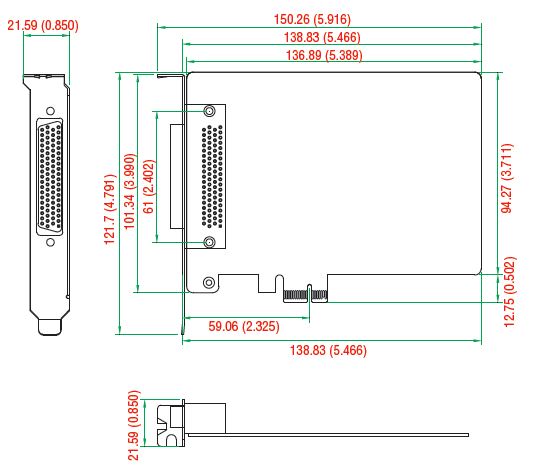

ProdGrafik
Intelligent RS-485 for Easy Installation and Troubleshooting (Patent Pending)

Setting up an RS-485 network is relatively straightforward. The challenge comes when the power is turned on and the devices connected to the network start transmitting and receiving data. In most cases, engineers will need to further tune the system by configuring pull high/low resistors and terminators at strategic points along the network. Moxa’s new Intelligent RS-485 technology supports two essential features to make it easy: (1) One-Click Installation automatically analyzes the network topology and then adjusts terminators and pull high/low resistors. (2) One-Click Troubleshooting tells you what to change to make a deficient network viable.


    Hardware

    Comm. Controller
    • 16C550C compatible

    Bus
    • PCI Express x1

    Serial Interface

    Number of Ports
    • 8

    Serial Standards
    • CP-118E-A-I: RS-232/422/485
    • CP-138E-A-I: RS-422/485

    Max. No. of Boards per PC
    • 4

    Serial Line Protection

    ESD Protection
    • 15 KV on the board

    Surge Protection
    • 4 kV

    Electrical Isolation
    • 2 kV

    Performance

    Baudrate
    • 50 bps to 921.6 Kbps

    Serial Communication Parameters

    Data Bits
    • 5, 6, 7, 8

    Stop Bits
    • 1, 1.5, 2

    Parity
    • None, Even, Odd, Space, Mark

    Flow Control
    • RTS/CTS, XON/XOFF

    Serial Signals

    RS-232
    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

    RS-422
    • TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

    RS-485-4w
    • TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

    RS-485-2w
    • Data+(B), Data-(A), GND

    Operating Systems

    Windows Real COM Drivers
    • Windows 2000/XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64)

    Fixed TTY Drivers
    • QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 (x86/x64)

    Linux Real TTY Drivers
    • Linux 2.4.x, 2.6.x, 3.x

    Note
    • Please refer to Moxa’s website for the latest driver support information.

    Physical Characteristics

    Dimensions
    • 109.5 x 130 mm (4.31 x 5.11 in)

    Environmental Limits

    Operating Temperature
    • 0 to 55°C (32 to 131°F)

    Storage Temperature
    • -20 to 85°C (-4 to 185°F)

    Ambient Relative Humidity
    • 5 to 95% (non-condensing)

    Altitude
    • Up to 2000 m

    Note
    • Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

    Standards and Certifications

    EMC
    • CE, FCC

    EMI
    • EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B

    EMS
    • EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)

    Green Product
    • RoHS, CRoHS, WEEE

    MTBF (mean time between failures)

    Time
    • CP-118E-A-I: 152,124 hrs
    • CP-138E-A-I: 221,331 hrs

    Database
    • Telcordia (Bellcore), GB

    Power Requirements

    Power Consumption
    • CP-118E-A-I: 2,356 mA @ 3.3 V CP-138E-A-I: 2,356 mA @ 3.3 V




Ordering Information

CP-118E-A-I        8-port RS-232/422/485 PCI Express x1 serial board w/ surge protection and electrical isolation
CP-138E-A-I 8-port RS-422/485 PCI Express Smart x1 serial board w/ surge protection and electrical isolation
