MOXA CP-134EL-A-I

4-port RS-422/485 PCI Express board with 4 kV surge and 2 kV electrical isolation

MOXA CP-134EL-A-I
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • PCI Express x1 compliant
  • Serial communication speed up to 921.6 Kbps
  • 128-byte FIFO and on-chip S/W flow control
  • Variety of connection cables and boxes available for RS-232/422/485
  • Drivers provided for the latest versions of Windows, Linux, and Unix
  • Easy maintenance with on-board LED display and management software
  • 15 kV ESD, 4 kV surge, and 2 kV electrical isolation onboard
Das Modell CP-134EL-A-I ist ein intelligentes serielles PCI Express-Multiport-Board für POS- und ATM-Anwendungen sowie für Anwendungen von Industrieautomationssystem-Herstellern und Systemintegratoren. Das Modell CP-134EL-A-I ist mit allen gängigen Betriebssystemen kompatibel.

Jeder der 8 seriellen Ports unterstützt Datenraten von bis zu 921,6 kbps und liefert zudem alle Modem-Steuersignale, so dass die Kompatibilität mit einer Vielzahl von seriellen Peripheriegeräten gewährleistet ist. Darüber hinaus arbeitet das Board CP-134EL-A nach dem Standard PCI Express x1 und kann somit in jedem beliebigen PCI Express-Steckplatz installiert werden.
ProdGrafik
Intelligent RS-485 for Easy Installation and Troubleshooting (Patent Pending)

Setting up an RS-485 network is relatively straightforward. The challenge comes when the power is turned on and the devices connected to the network start transmitting and receiving data. In most cases, engineers will need to further tune the system by configuring pull high/low resistors and terminators at strategic points along the network. Moxa’s new Intelligent RS-485 technology supports two essential features to make it easy: (1) One-Click Installation automatically analyzes the network topology and then adjusts terminators and pull high/low resistors. (2) One-Click Troubleshooting tells you what to change to make a deficient network viable.


    Hardware

    Comm. Controller
    • 16C550C compatible
    Bus
    • PCI Express x1


    Serial Interface


    Number of Ports
    • 4
    Serial Standards
    • RS-422/485
    Max. No. of Boards per PC
    • 4


    Serial Line Protection


    ESD Protection
    • 15 kV on the board
    Surge Protection
    • 4 kV
    Electrical Isolation
    • 2 kV


    Performance


    Baudrate
    • 50 bps to 921.6 Kbps


    Serial Communication Parameters


    Data Bits
    • 5, 6, 7, 8
    Stop Bits
    • 1, 1.5, 2
    Parity
    • None, Even, Odd, Space, Mark
    Flow Control
    • RTS/CTS, XON/XOFF


    Serial Signals


    RS-422
    • TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
    RS-485-4w
    • TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
    RS-485-2w
    • Data+(B), Data-(A), GND


    Operating Systems


    Windows Real COM Drivers
    • Windows 2000/XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64)
    Fixed TTY Drivers
    • QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 (x86/x64)
    Linux Real TTY Drivers
    • Linux 2.4.x, 2.6.x, 3.x

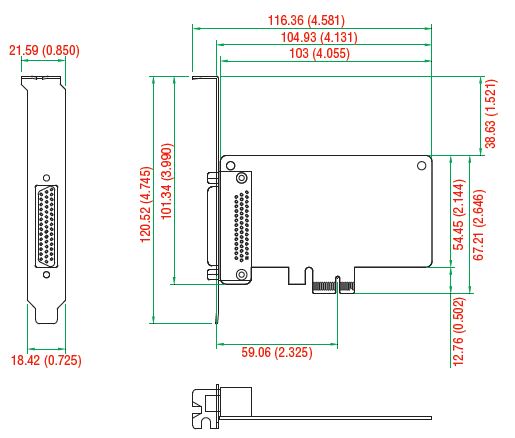

    Physical Characteristics


    Dimensions
    • 67.2 x 103 mm (2.69 x 4.06 in)


    Environmental Limits


    Operating Temperature
    • 0 to 55°C (32 to 131°F)
    Storage Temperature
    • -20 to 85°C (-4 to 185°F)
    Ambient Relative Humidity
    • 5 to 95% (non-condensing)
    Altitude
    • Up to 2000 m


    Standards and Certifications


    EMC
    • CE, FCC
    EMI
    • EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
    EMS
    • EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)
    Green Product
    • RoHS, CRoHS, WEEE


    MTBF (mean time between failures)


    Time
    • 433,077 hrs
    Database
    • Telcordia (Bellcore), GB


    Power Requirements


    Power Consumption
    • 3,414 mA @ 3.3 V
