MOXA NPort 6610 / NPort 6650 Series

8, 16, and 32-port RS-232/422/485 rackmount terminal servers

Eigenschaften
Beschreibung
Weitere Informationen
PDF

Up to 32 ports for high density environments
Non-standard baudrates supported with high precision
Port buffers for storing serial data when the Ethernet is off-line
Supports IPv6
Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
Modular design for scalability
DES/3DES/AES for highly secure data transmissions
Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)

Die NPort® 6600-Serie von Secure Terminal Servern ist die richtige Wahl für Anwendungen mit mehreren seriellen Geräten auf engem Raum. Drei gängige Standards werden für die Datenverschlüsselung verwendet: DES, 3DES und AES. Serielle Geräte aller Art können mit dem NPort® 6600 verbunden werden. Jeder serielle Port des NPort® ist unabhängig für RS-232-, RS-422- oder RS-485-Datenübertragung konfigurierbar.

LCD-Anzeige für einfache Konfiguration

Der NPort® 6600 verfügt über eine integrierte LCD-Anzeige für die Konfiguration und zur Auswahl der Betriebsmodi. In der Anzeige erscheinen der Servername, die Seriennummer und die IP-Adresse sowie Konfigurationsparameter des Servers, wie z. B. IP-Adresse, Netzmaske und Gateway-Adresse. Diese Angaben können ganz einfach und schnell aktualisiert werden.

Einstellbare Widerstandswerte für die RS-485-Kommunikation

Der NPort® 6600 bietet eine einstellbare Terminierung und entsprechende Widerstandswerte für RS-485-Kommunikation. In einigen kritischen Umgebungen sind Abschlusswiderstände erforderlich, um die Reflexion serieller Signale zu verhindern. Mit dem einstellbaren Widerstand kann die Integrität des elektrischen Signals erhalten werden. Da ein bestimmter Widerstandswert nicht für alle Umgebungen verwendet werden kann, ermöglicht der NPort®6600 die manuelle Anpassung der Widerstandswerte für jeden seriellen Port mithilfe integrierter DIP-Schalter.

Specs

Ethernet Interface
- Number of Ports 1
- Speed 10/100 Mbps, auto MDI/MDIX
- Connector 8-pin RJ45
- Magnetic Isolation 1.5 kV built-in

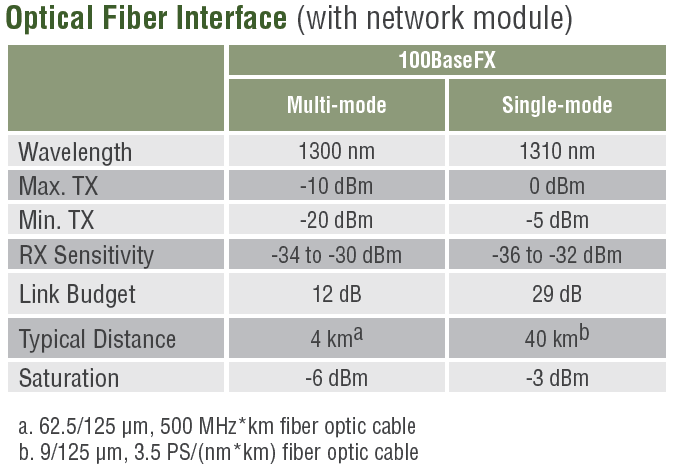

Optical Fiber Interface (with network module)
Serial Interface
- Number of Ports 8, 16, or 32
- Serial Standards
  - NPort 6610: RS-232
  - NPort 6650: RS-232/422/485

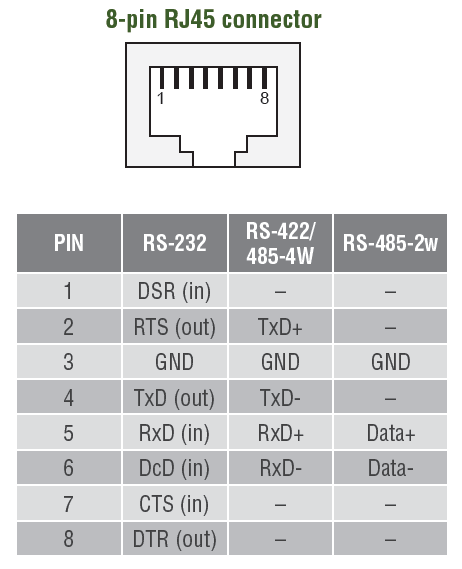

- Connector 8-pin RJ45
- RS-485 Data Direction Control ADDC® (Automatic Data Direction Control)
- Console Port Dedicated RS-232 console port on rear panel (8-pin RJ45)
Serial Communication Parameters
- Data Bits 5, 6, 7, 8
- Stop Bits 1, 1.5, 2
- Parity None, Even, Odd, Space, Mark
- Flow Control RTS/CTS, DTR/DSR, XON/XOFF
- Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
- Pull High/Low Resistor for RS-485 1 kÙ, 150 kÙ
- Terminator for RS-485 120 Ù
Serial Signals
- RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422 Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w Data+, Data-, GND
Memory Expansion Slot
- Slot Type SD socket (supports up to 2 GB)
Software
- Network Protocols ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
- Security Protocols DES, 3DES, AES, SSH, SSL
- Configuration Options Web Console, Serial Console, Telnet Console, Windows Search Utility
- Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
- Management SNMP MIB-II
- IP Routing Static, RIP-I, RIP-II
Operation Modes
- Standard Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled
- Secure Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
Applications
- Terminal Sessions 8 sessions per port
Physical Characteristics
- Housing Metal
- Weight
  - NPort 6600-8: 3460 g
  - NPort 6600-16: 3580 g
  - NPort 6600-32: 3600 g
- Dimensions
  - Without ears: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
  - With ears: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
Environmental Limits
- Operating Temperature
  - Standard Models: 0 to 55°C (32 to 131°F)
  - Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  - High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
- Storage Temperature
  - Standard Models: -40 to 75°C (-40 to 167°F)
  - Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  - High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Altitude Up to 2000 m
- Note Please contact us if you require products guaranteed to function properly at higher altitudes.
Power Requirements
- Input Voltage
  - AC Models: 100 to 240 VAC
  - DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC), 110 VDC (88 to 300 VDC)
- Power Consumption
  - AC Models: 285 mA @ 100 VAC, 190 mA @ 240 VAC
  - DC Models: 293 mA @ 48 VDC, 200 mA @ 88 VDC, 65 mA @ 300 VDC
- Alarm Contact Relay output with current carrying capacity of 1 A @ 24 VDC
- Power Line Protection 1 kV burst (EN 61000-4-4: EFT/B), 0.5 kV surge (EN 61000-4-5)
Standards and Certifications
- Safety UL 60950-1, EN 60950-1
- EMI EN 55022 Class A, FCC Part 15 Subpart B Class A
- EMS
  - EN 61000-4-2 ESD: contact 4 kV; air 8 kV
  - EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz)
  - EN 61000-4-4 EFT: Power 4 kV; Signal 2 kV
  - EN 61000-4-5 Surge: AC 1 kV (AC models); DC 2 kV (DC/HV models); Signal 1 kV
  - EN 61000-4-6 CS: 3 V
  - EN 61000-4-8
  - EN 61000-4-11: A
- Freefall IEC-68-2-6, IEC-68-2-34, IEC-68-2-32
- Vibration IEC-68-2-6, IEC-68-2-34
- Green Product RoHS, CRoHS, WEEE
- EMC 55022/24
Reliability
- Alert Tools Built-in buzzer and RTC (real-time clock)
- Automatic Reboot Trigger Built-in WDT (watchdog timer)
- MTBF (mean time between failures)
  - NPort 6610-8: 135,891 hrs
  - NPort 6610-16: 102,373 hrs
  - NPort 6610-32: 68,707 hrs
  - NPort 6650-8: 135,370 hrs
  - NPort 6650-16: 101,783 hrs
  - NPort 6650-32: 68,177 hrs
  - NPort 6650-8-HV-T: 501,171 hrs
  - NPort 6650-16-HV-T: 380,006 hrs
  - NPort 6650-32-HV-T: 290,914 hrs
Available Models
- Model No. Description
- NPort 6610-8
  8-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input
- NPort 6610-8-48V
  8-port RS-232 to Ethernet Secure Device Server, ±48 VDC input
- NPort 6610-16
  16-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input
- NPort 6610-16-48V
  16-port RS-232 to Ethernet Secure Device Server, ±48 VDC input
- NPort 6610-32
  32-port RS-232 to Ethernet Secure Device Server, 100-240 VAC input
- NPort 6610-32-48V
  32-port RS-232 to Ethernet Secure Device Server, ±48 VDC input
- NPort 6650-8
  8-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input
- NPort 6650-8-T
  8-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C operating temperature, 100-240 VAC input
- NPort 6650-8-HV-T
  8-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC power input, -40 to 85°C operating temperature
- NPort 6650-8-48V
  8-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input
- NPort 6650-16
  16-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input
- NPort 6650-16-48V
  16-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input
- NPort 6650-16-T
  16-port RS-232/422/485 to Ethernet secure terminal server, -40 to 75°C operating temperature, 100-240 VAC input
- NPort 6650-16-HV-T
  16-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC power input, -40 to 85°C operating temperature
- NPort 6650-32
  32-port RS-232/422/485 to Ethernet Secure Terminal Server, 100-240 VAC input
- NPort 6650-32-48V
  32-port RS-232/422/485 to Ethernet Secure Terminal Server, ±48 VDC input
- NPort 6650-32-HV-T
  32-port RS-232/422/485 to Ethernet secure terminal server, 88 to 300 VDC power input, -40 to 85°C operating temperature
Optional Accessories
- Network Expansion Modules
- Model No. Description
- NM-TX02
  2 10/100Base TX port
- NM-TX02-T
  2 10/100Base TX port, -40 to 75°C operating temperature
- NM-TX01
  1 10/100Base TX port
- NM-TX01-T
  1 10/100Base TX port, -40 to 75°C operating temperature
- NM-FX01-M-SC
  1 100BaseFX port, multi mode, SC connector
- NM-FX01-M-SC-T
  1 100BaseFX port, multi mode, SC connector, -40 to 75°C operating temperature
- NM-FX01-S-SC-T
  1 100BaseFX port, single mode, SC connector, -40 to 75°C operating temperature
- NM-FX01-S-SC
  1 100BaseFX port, single mode, SC connector
- NM-FX02-M-SC
  2 100BaseFX ports, multi mode, SC connector
- NM-FX02-M-SC-T
  2 100BaseFX ports, multi mode, SC connector, -40 to 75°C operating temperature
- NM-FX02-S-SC
  2 100BaseFX ports, single mode, SC connector
- NM-FX02-S-SC-T
  2 100BaseFX ports, single mode, SC connector, -40 to 75°C operating temperature
- NM-modem-T
  1 PSTN modem port with RJ11 connector, -40 to 75°C operating temperature

MOXA NPort 6600 Series Datasheet (1098.5 kB)
