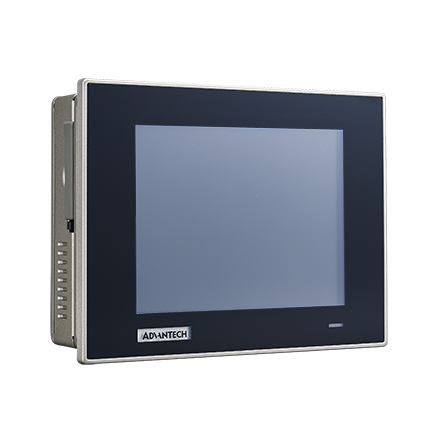

Advantech TPC-651T

5.7" TFT LED LCD Intel® Atom™ Thin Client Terminal

Advantech TPC-651T
  • EigenschaftenEigenschaften
  • BeschreibungBeschreibung
  • Weitere InformationenWeitere Informationen
  • PDFPDF
  • Industrial-grade 5.7/6.5" VGA TFT LCD with 50K lifetime and LED backlight
  • Intel® Atom™ E3827 1.75 GHz dual-core processor with 4 GB DDR3L SDRAM
  • Compact, fanless embedded system with aluminum alloy front bezel
  • Wide operating temperature range -20 ~ 60 °C (-4 ~ 140 °F)

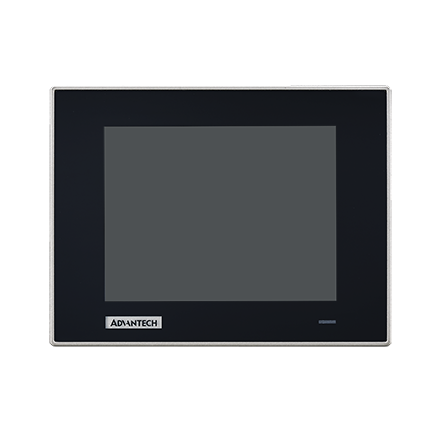

  • True-flat, IP65-rated front panel
  • Front-facing LED indicators to show operating status
  • Durable touchscreen with 5-wire resistive touch control
  • Supports Advantech’s iDoor technology for integrating optional accessories
  • Supports AC/DC input with optional power adapter
  • Chassis grounding protection
  • Supports Advantech’s WISE-PaaS/RMM remote management software
The TPC-651T thin-client terminal is equipped with a 5.7"/6.5" VGA TFT LCD, low-power Intel® Atom™ E3827 1.75 GHz dual-core processor, and 4 GB DDR3L SDRAM to deliver high-performance computing in a compact, fanless system. To enhance the system’s durability, TPC-651T features a true-flat touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and 5-wire resistive touch control. In addition to supporting a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F), TPC-651T includes a full-size mini PCIe slot for extending the system functionalities to satisfy diverse automation application needs. Moreover, Advantech’s iDoor technology can be integrated via the mini PCIe slot in order to provide additional I/O connectors, isolated digital I/O, fieldbus protocols, 3G/GPS/GPRS/Wi-Fi communication, and MRAM.
ProdGrafik

Specifications


    General

      BIOS
      AMI UEFI

      Certification
      BSMI, CCC, CE, FCC Class A, UL

      Cooling System
      Fanless design

      Dimensions (W x H x D)
      199 x 152 x 58.9 mm (7.83” x 5.98” x 2.32”)

      Enclosure
      Front bezel: Die-cast Aluminum alloy
      Back housing: SECC

      Mounting
      Wall or Panel Mount

      OS Support
      Microsoft® WES7 32bit/64bit / WE8S 64bit / Windows 7/ 8.1 32bit/64bit / Windows 10 Enterprise LTSB

      Power Consumption
      19.2 W (typical)

      Power Input
      24V DC +/- 20%

      Watchdog Timer
      1 ~ 255 sec (system)

      Weight (Net)
      1.5 KG



    System Hardware

      CPU
      Intel® Atom™ E3827 1.75 GHz Dual-core Processor

      Memory
      1 x SO-DIMM with 4GB DDR3L SDRAM (supports up to 8G)

      LAN
      10/100/1000 Base-T x 2

      Expansion Slots
      Full-size Mini PCI-E

      Storage

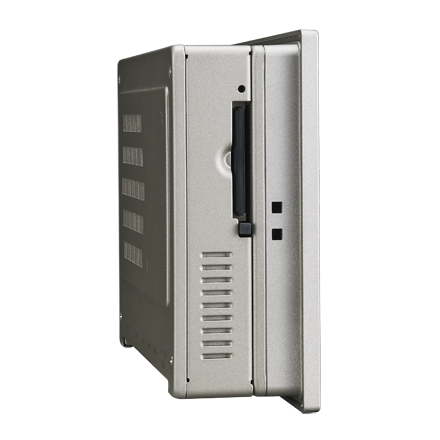

      CFast slot x 1

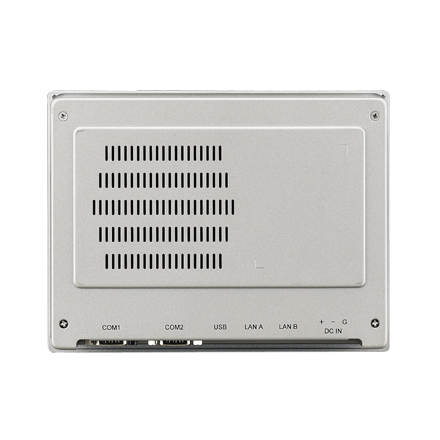

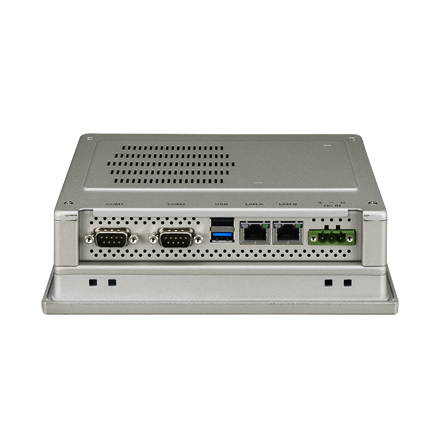

      I/O
      RS-232 x 1, RS-232/422/485 x 1
      USB 3.0 x 1
      USB 2.0 x 1



    LCD Display

      Display Type
      VGA TFT LED LCD

      Display Size
      5.7"/6.5"

      Max. Resolution
      640 x 480

      Max. Colors
      262K

      Luminance cd/m 2
      550/800

      Viewing Angle (H/V°)
      160/140

      Backlight Life
      50,000 hrs

      Contrast Ratio
      800:1/600:1



    Touchscreen

      Lifespan
      36 million touches at single point

      Light Transmission
      Above 75%

      Resolution
      Linearity

      Type
      5-wire, analog resistive



    Environment

      Humidity
      10 ~ 95% RH @ 40°C, non-condensing

      Ingress Protection
      Front panel: IP66

      Operating Temperature
      -20 ~ 60°C (-4 ~ 140°F)

      Storage Temperature
      -30 ~ 70°C (-22 ~ 158°F)

      Vibration Protection
      With CFast: 2 Grms (5~500 Hz)
      With HDD: 1 Grms (5 ~ 500 Hz)
      (Operating, random vibration)





ORDERING INFORMATION
Available Models
TPC-651T-E3AE 5.7" VGA Panel PC, Intel® Atom™ E3827 1.75 GHz Dual-core Processor, 4GB
(True-flat touch screen)
TPC-651H-E3AE 5.7" VGA Panel PC, Intel® Atom™ E3827 1.75 GHz Dual-core Processor, 4GB
(Non-flat touch screen IP65 certified traditional TPC front panel)
TPC-651T-6E3AE 6.5" VGA Panel PC, Intel® Atom™ E3827 1.75 GHz Dual-core Processor, 4GB
(True-flat touch screen)
Optional Accessories
PWR-247-CE 60W DC 24V/2.5A Output Power Supply
TPC-1251T-EHKE HDD/SSD and iDoor extension kit
1702002605 Power Cable EU Plug 1.8 M
1702031801 Power Cable UK Plug 1.8 M
1700000596 Power Cable China/Australia Plug 1.8 M
Embedded O/S
2070014327 TPC-xx51T/H WS7P x64 MUI Image v4.14
2070013613 TPC-xx51T/H WS7P x86 MUI Image v4.12
2070013845 TPC-651T/H WEC7 x64 MUI Image V4.00
2070014400 TPC-xx51T/H Win10 Enterprise LTSB x64 MUI image v6.00 B002
S/W Bundle Offering
WA-HT651T-E15H1AE TPC-651T-6E3AE, HMI Runtime 1500 tags, 32G CFast, WES7P
iDoor Modules   (TPC-1251T-EHKE is required for iDoor modules)
PCM-26D2CA-AE SJA1000 CANBus, CANOpen, DB9 x 2
PCM-26D1DB-MAE Hilscher netX100 FieldBus, ProfiBus, DB9 x 1
PCM-27D24DI-AE Digital I/O, 16 DI / 8 DO, Isolation, DB37 x 1
PCM-24D2R4 OXPCIe-952 UART, Isolated RS-422/485, DB9 x 2
PCM-24D2R2 OXPCIe-952 UART, Isolated RS-232, DB9 x 2
PCM-24R2GL-AE 2 Port Giga LAN Intel i350 PCIe mini card
PCM-24R1TP-AE Intel 82574L, GbE, IEEE 1588 PTP, RJ45 x 1
PCM-24S2WF-AE 802.11 a/b/g/n 2T2R w/ BT4.0, Atheros AR9462
