MOXA CP-104UL
4-port RS-232 Universal PCI Smart Serial Board
- Over 800 kbps data throughput for top performance
- 921.6 kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with 3.3/5V PCI and PCI-X
- Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
- 15 kV ESD protection on the board
- Wide temperature model available for -40 to 85°C environments
Das CP-104UL Universal PCI-Board mit vier Ports wurde für Point-of-Sale- und Geldautomaten-Anwendungen entwickelt. Die Boards sind die erste Wahl führender Entwickler aus dem Bereich industrielle Automatisierung und von Systemintegratoren. Sie unterstützen zahlreiche Betriebssysteme, darunter Windows, Linux und sogar Unix. Darüber hinaus unterstützt jeder der seriellen RS-232-Boards-Ports die sehr hohe Baudrate von 921,6 Kbps. Das Modell CP-104UL bietet umfassende Modem-Steuerungssignale zur Wahrung der Kompatibilität mit einer breiten Palette von seriellen Peripheriegeräten und es unterstützt PCI-Busse mit 3,3 V und 5 V, sodass es in nahezu jedem PC-Server installiert werden können.
Hardware
Comm. Controller
MU860 (16C550C compatible)
Bus
32-bit Universal PCI
Connectors
DB44 female
Serial Interface
Number of Ports
4
Serial Standards
RS-232
Max. No. of Boards per PC
4
Serial Line Protection
ESD Protection
15 kV on the board
Performance
Baudrate
50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS, XON/XOFF
I/O Address
Assigned by BIOS
IRQ
Assigned by BIOS
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Operating Systems
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64),
Windows 2008 R2/2012/2012 R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers
QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Linux Real TTY Drivers
Linux 2.4.x, 2.6.x
Physical Characteristics

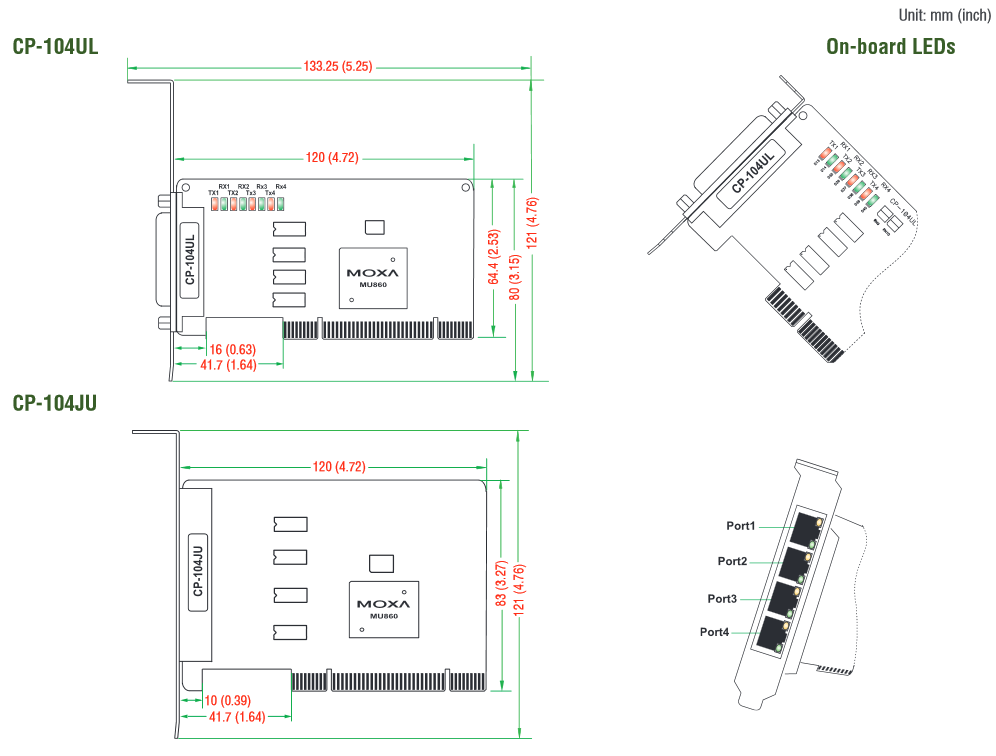

Dimensions
64.4 x 120 mm (2.53 x 4.72 in)
Environmental Limits
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Note Please contact usif you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
EMC
CE, FCC
EMI
EN 55022, FCC Part 15 Subpart B Class B
EMS
EN 55024, IEC 61000-4-2, IEC 61000-4-3
Green Product
RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time
558,961 hrs
Database
MIL-HDBK-217F, GB 25°C
Power Requirements
Power Consumption
120 mA @ +5 V
Ordering Information
CP-104UL-DB9M
- 4-port RS-232 low profile Universal PCI serial board, 0 to 55°C operating temperature (includes DB9 male cable)
CP-104UL-DB25M
- 4-port RS-232 low profile Universal PCI serial board, 0 to 55°C operating temperature (includes DB25 male cable)
CP-104UL-T
- 4-port RS-232 low profile Universal PCI serial board, -40 to 85°C operating temperature
